Views from aSmall: Specimen #1

an applet-based variable size-scale adventure for nano-microscopy explorers

Below find an interactive model representing a transmission electron microscope specimen similar in size to the grid shown on the right, next to an ordinary staple. The model is of a rigid self-supporting specimen like that sometimes used for the study of semiconductors and layered metal/ceramic devices, nominally prepared by cutting a 3-mm diameter disc, thinning via abrasion to 100 micron thickness, dimpling from one side with a specialized milling machine, and then perforation by argon ion milling. Using your mouse, you can rotate, spin, as well as zoom around on or even inside the structure, thanks to an intersecting-axis goniometer with no rotation limits. The 31 sections of the specimen nearest the perforation in the center taper down to zero thickness. These are the regions which are most interesting for transmission electron microscopy. However the wide tilts, the large focal depth, and the geometric contrast mechanisms of the web-microscope used here allow one to also obtain topographic information of the sort that atomic force and scanning electron microscopes can generate. We have plans to allow you to explore this and other specimens on the micron, nanometer, and even atomic scales in the days ahead, as well as to taylor stories for the use of such models in classrooms from kindergarten through grad school. One objective is to provide visitors with a visceral feel for scale changes that the nano-explorer experiences, in the process of "getting small".

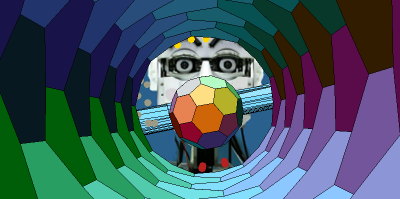

How astute are your observational skills? What information would you bring back from a "fantastic voyage" into the nanoworld? Don't mind the curious duck in the background, as long as it keeps some distance. If you look carefully, you may already be able to find a bit of pollen, a few red blood cells, a couple of tobacco mosaic virus particles, a carbon nanotube, and even a buckyball with a few metal atoms hanging around. Of course, unfamiliar contrast mechanisms are needed to observe objects smaller than the wavelength of light, so be prepared for a few surprises.
/\ [Shift]-Drag Down/Up Also Zooms In/Out /\

Translate rotation-point laterally: ; vertically:
After pressing xXyYzZ also translates (amount depends on zoom)
Note: The mouse allows you to re-orient and or spin the specimen, while the Shift key plus vertical mouse motion allows zooming in on the model for a closer look. The Home key returns you to the original point of view, and the buttons above let you estimate goniometer angles and field-width. The rotation-center may be moved along scope cartesian (xyz) axes by tapping the xXyYzZ keys (hint: rotate between taps). If this version bogs down on zooming (e.g. with an older PC), try a 400x400 or 200x200 window. Try this model for less surface topography, and this model if you wish to rotate "the camera" rather than the specimen.

Put on your Sherlock Holmes hat, and ask...

Puzzler #1: If the diameter of the disk is 3mm, what is it's thickness at the outer edge? What is the diameter of the perforation?

Puzzler #2: This is tougher: Estimate the radius of the spherical dimple on one side of the disk, as well as the distance the dimpling wheel protruded through the perforation at the end of the dimpling process. Note: One usually stops dimpling before perforation, and perforates by a gentler method e.g. argon ion milling, but assume here (to be specific about geometry) that the perforation was created by the spherical dimple itself.

Puzzler #3: Perhaps equally tough, but of more direct relevance to the microscopist: Estimate the wedge-angle between intersecting specimen surfaces at the perforation, and the length of perimeter associated with each of the 31 sections which border the perforation.

Puzzler #4: Another practical question for the microscopist: How many square microns of specimen, whose thickness is less than 0.5 microns, will the microscopist find? If the objects of interest occur 10^6 times per square centimeter of specimen, how many objects are you therefore likely to find in such thin areas of this specimen?

Puzzler #5: If the defects are "bulk defects" much less than a micron in size, the amount of "volume" of your specimen which is thin becomes the important parameter. How much volume of this specimen (in cubic microns) is associated with parts of this specimen which are less than 0.5 microns in thickness? If there are 10^10 of the interesting objects per cubic centimeter, how many would you expect to find in a survey of all such thin area in this specimen.

Puzzler #6: What is the spacing between squares of the smaller "secondary grid" that you'll find somewhere near the edge of the perforation? Hint: The distance is larger than the wavelength of visible light, and perhaps 6 times the feature width used in modern gigascale integrated circuits.

Puzzler #7: As you zoom in, you may notice a hierarchy of three more even smaller (e.g. call them third, fourth, and fifth-level) grids at the perforation's edge. These third, fourth, and fifth level grids are not typically resolvable by light microscopes, and hence constitute the primary domains of electron and scanning probe microscopy. Most scanning electron microscopes today can pick up periodicities as small as those in the fourth-level grid. Scanning tunneling and atomic force microscopes (which mechanically scan a tip over the specimen) under suitable conditions can pick up details smaller than the fifth-level grid, as can conventional transmission electron microscopes. How many such fifth-level grid squares would be needed to outline the whole perimeter of the perforation? Note: Since mechanical (scanning probe) microscopes use tips which are made of atoms, sub-atomic lateral resolution is difficult even though they can easily do sub-atomic height profiling, but for decades transmission electron microscopes have fallen into two categories: the handful of atomic resolution scopes that can barely resolve details smaller than the 2 Angstroms separation between most atoms, and conventional scopes that cannot. This is about to change with new aberration-correction techniques, which will eventually allow us to see atomic nuclei as little "points of light" in images.

Puzzler #8: Note that the "shoreline" around the perforation is irregular. Can you tell us anything about the frequency spectrum of deviations from circularity, either with a seat of the pants estimate, or via quantitative analysis? Does the character of these deviations change as one goes to smaller and smaller sizes, or does the edge profile in this specimen show signs of self-similarity?

Puzzler #9: Note that the dimpled side of the specimen shows more roughness than the non-dimpled side. Is the surface topography self-similar on some or all size scales? On what size scales does the roughness appear to associated with bumps, scratches, pits, random 1/f topography, or something else? If you see bumps, what distribution of widths and heights do they have, and how many per square centimeter do your observations suggest are present? Likewise for pits or scratches. Do possible causes for these features come to mind? Can you put limits on the amount of root-mean-square roughness per decade of lateral frequency, on either side, between one cycle per millimeter and one cycle per micron? How about between one cycle per micron and one cycle per nanometer?

Puzzler #10: Make note of the sizes and shapes of the objects you find. For example, what are the dimensions of the pollen particle, the red blood cells, the tobacco mosaic virus particles, the nanotube, and the buckyball. Do the two tobacco mosaic virus rods have the expected cross-sectional shape? How many walls does the multi-walled nanotube show? Is the single-walled part of that nanotube of the armchair, zig-zag, or chiral variety? Is there anything which is atypical about it? How many pentagons can be found on the surface of the buckyball?

Puzzler #11: What are the distances between metal atoms in those nearby clusters? Are the atom colors coordinated with possible atom, or different unit cell, types? What features make the various cluster types preferable, for those atoms which adopt them? Capture an image of each of the metal atom arrays viewed down a three-fold symmetric projection. How many three-fold directions does each of these arrays have? Five-fold? Four-fold? Can you name the polyhedron associated with each of these nearest neighbor cluster types? How might you describe the structure and crystallographic orientation of atoms which make up the specimen disc itself, in the sections where they are visible. Does this structure suggest values for the atomic number of these atoms (and hence the chemical composition of this part of the specimen)? If these are typical interatom spacings, how many atoms are contained in the specimen as a whole? What is the largest projected spacing between rows of atoms visible in these disc atoms? What lattice direction allows one to view two of these wide spacings at once? How many such lattice directions are there? If the term "dimer row" is familiar to you, can you tell which direction the dimer rows are running on the flat (non-dimpled) underside of this region of the disc? Can you explain how changes in this direction are often associated with surface steps, easily seen by scanning probe microscopes, which are less than an inter-atom spacing in height?

Puzzler #12: If the model had a moveable rotation center randomly located, could you find your way back to the buckyball on a second visit? How might you describe it's location in terms of the superposed grid hierarchy? For example, might one say it's located in perimeter cell, or something similar, where perimeter-cell numbering starts from that part of the perimeter nearest the pollen grain? If the grid lines weren't drawn on the specimen, what landmarks and facts about the grid hierarchy might you note so that (if need be) you could redraw the gridlines yourself on images from the next visit? Also, can you determine the number of buckyballs in perimeter-cell, without moving the rotation center?

Future Puzzlers: Is there anything yet to notice about interfaces, or about point, line and extended lattice defects? How would you recognize an extrinsic stacking fault in this model? How would you determine a dislocation's Burger's vector? How would you measure strain?

Storylines for Classroom Use: Suggestions invited.

This is one of several web-based "active mnemonics", designed: (i) to offer complementary perspectives and resources for achieving present day teaching goals among students with a wide range of learning styles; (ii) to do this in the context of emergent topics in modern day science (e.g. nanoscale exploration, information physics, allpaths/action/aging and metric-based anyspeed dynamics), many of which have only begun to work their way into textbooks and curriculum goals; and (iii) to be reliably available for use by individual teachers in class and by students out of class. Nanoworld exploration is especially interesting in this regard since it can offer an open-ended challenge to one's skills at empirical observation and reporting, allowing students to "participate in scientific investigations based on real-life questions that progressively approximate good science". This is, for example, a primary goal of the K-12 Show-Me Standards on scientific inquiry, the basis for Missouri Assessment Program tests. Most classroom challenges instead focus on factual knowledge and skills at theoretical prediction, perhaps since robust empirical challenges have been more difficult to set up.

Frequently Asked Questions: Suggestions invited.
