Food for Thought (and perhaps some detective work of your own):

*Puzzler #1*: If the diameter of the disk is 3mm, what is
it's **thickness at the outer edge?** What is the
**diameter of the perforation?**

*Puzzler #2*: This is tougher: Estimate the
**radius of the spherical dimple** on one side of
the disk, as well as the **distance the dimpling
wheel protruded through the perforation** at the
end of the dimpling process. *Note*: One usually
stops dimpling before perforation, and perforates
by a gentler method e.g. argon ion milling, but
assume here (to be specific about geometry)
that the perforation was created by the spherical
dimple itself.

*Puzzler #3*: Perhaps equally tough, but
of more direct relevance to the microscopist:
Estimate the **wedge-angle between intersecting
specimen surfaces** at the perforation, and the
**length of perimeter** associated with each of the
32 sections which border the perforation.

*Puzzler #4*: Another practical
question for the microscopist: How
many **square microns of specimen**, whose thickness
is less than 0.5 microns, will the
microscopist find? If the objects of interest
occur 10^6 times per square centimeter of specimen,
**how many objects are you therefore likely to find** in
such thin areas of this specimen?

*Puzzler #5*: If the defects are
"bulk defects" much less than a micron in size,
the amount of "volume" of your specimen which
is thin becomes the important parameter.
How much **volume of this specimen (in
cubic microns)** is associated with parts
of this specimen which are less than 0.5
microns in thickness? If there are 10^10
of the interesting objects per cubic
centimeter, **how many would you expect to
find** in a survey of all such thin area
in this specimen.

*Puzzler #6*: What is the **spacing
between squares of the smaller "secondary grid"** that
you'll find somewhere near the edge of the perforation?
*Hint*: The distance is larger than the
wavelength of visible light, and perhaps 6 times
the feature width used in modern gigascale integrated
circuits.

*Puzzler #7*: As you zoom in, you may notice
a hierarchy of three more even smaller (e.g. call them
third, fourth, and fifth-level) grids at the
perforation's edge. These third, fourth, and fifth
level grids are not typically resolvable by light
microscopes, and hence constitute the primary domains
of electron and scanning probe microscopy. Most
scanning electron microscopes today can pick up
periodicities as small as those in the fourth-level
grid. Scanning tunneling and atomic force microscopes
(which mechanically scan a tip over the specimen)
under suitable conditions can pick up details smaller
than the fifth-level grid, as can conventional
transmission electron microscopes. **How many such
fifth-level grid squares would be needed to outline
the whole perimeter** of the perforation?
*Note*: Since mechanical
(scanning probe) microscopes use tips which are made
of atoms, sub-atomic lateral resolution is
difficult even though they can easily do sub-atomic
height profiling, but for decades transmission electron
microscopes have fallen into two categories:
the handful of atomic resolution scopes that can barely resolve
details smaller than the 2 Angstroms separation between
most atoms, and conventional scopes that cannot. This
is about to change with new aberration-correction
techniques, which will eventually allow us to see atomic
nuclei as little "points of light" in images, and force
us to add a sixth grid-level to illustrate their mapping
capabilities.

*Puzzler #8*: Note that the "shoreline"
around the perforation is irregular. Can you
tell us anything about **the frequency spectrum of
deviations from circularity**, either with a seat
of the pants estimate, or via quantitative
analysis? Does the character of these
deviations change as one goes to smaller and
smaller sizes, or **does the edge profile in
this specimen show signs of self-similarity?**

*Puzzler #9*: Note that the dimpled
side of the specimen shows more roughness than
the non-dimpled side. Can you put limits on the
amount of **root-mean-square roughness per decade
of lateral frequency**, on either side, between
one cycle per millimeter and one cycle per micron?
How about between one cycle per micron and
one cycle per nanometer?

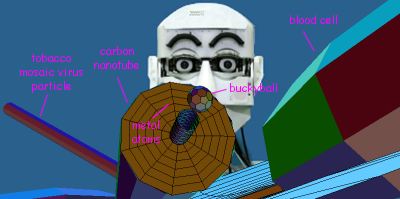

*Puzzler #10*: Make note of the sizes
and shapes of the objects you find. For example,
**what are the dimensions of
the pollen particle, the red blood cells, the
tobacco mosaic virus particles, the nanotube,
and the buckyball**. Do the two tobacco mosaic
virus rods have the expected cross-sectional
shape? How many walls does the multi-walled
nanotube show? Is the
single-walled part of that nanotube of the
armchair, zig-zag, or chiral variety?
How many pentagons can be found on the surface
of the buckyball?
What are the distances between metal atoms in
those nearby arrays? Are the atom colors coordinated
with possible atom types? What is the largest
projected spacing between rows of atoms visible
in the arrays? What lattice direction allows
one to view two of these wide spacings at once?
How many such lattice directions are there?
Is there anything yet to notice about **interfaces, or about
point, line and extended lattice defects?**
