Data Flow Diagrams Examples

We will study a variety of diagramming tools this semester. As with other topics we have studied, one must use the kind of tool that helps one accomplish a particular task at a particular time.

View pdf version

Consider the two maps of the United States below. They both show the states, but give very different information about them and would serve different purposes for decision making.

View pdf version

View pdf version

Data Flow Diagrams (DFDs), as the name suggests, illustrates the flow of information in a system. They are hardware independent and they do not reflect decision points. Rather they demonstrate the information and how it flows between specific processes in a system. They provide one kind of documentation for our reports.

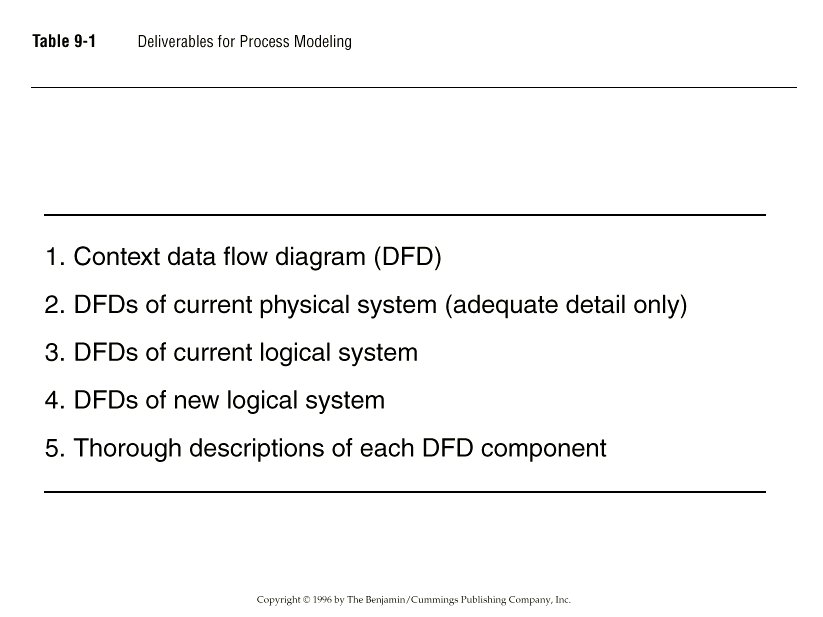

Deliverables for Process Modeling
  • Context Diagram
  • DFD's of current physical system
  • DFD's of the current logical system
  • DFD's of the proposed logical system
  • Thorough descriptions of each DFD element
  • Naming Conventions:
  • Data Flows: name of the packet of information (arcs)
  • Data Stores: name of the data stored there (rectangle)
  • Transformations: name of the activity (bubbles)
  • Origins and Destinations: name of producers, customers, etc. in the environment (boxes)

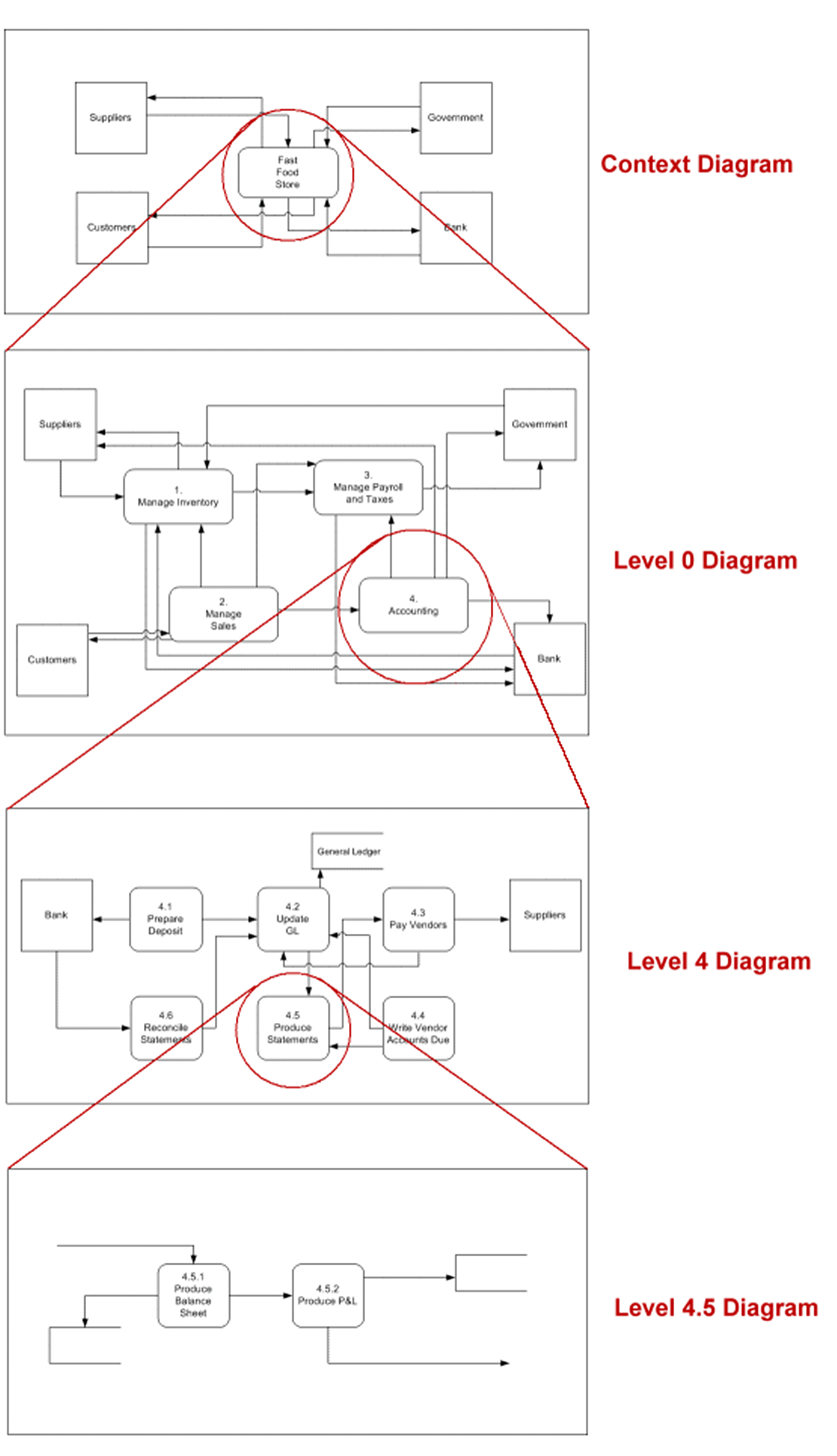

  • Since they generally describe a complex system, there are layers of DFD's that show increasingly more information about the processes. Consider the diagram below.

    View larger version

    View the table version

    These diagrams show a group of related sets:
  • Context Diagram: This is the highest level and represents the overall system and its interaction with its environment
  • Level 0 Diagram: This shows the major subsystems and their interactions
  • Level x Diagram: Shows the processes that make up each of the major subsystems
  • Level x.y Diagram: Shows detail of the above diagrams
  • Each bubble on one level gets "exploded" to show the detail at another level. These pairs are referred to as parent-child pairs. It is important to keep balance between the individual parents and their children.

    Numbering: Each process in Level 0 gets a number. Each child inherits the number. Bubbles on the child dfd maintain that number, and begin their numbering as a number after the decimal point. These are unique numbers.

    Advanced Rules Governing Data Flow Diagramming:

  • A composite data flow on one level can be split into component data flows at the next level, but no new data can be added and all data in the composite must be accounted for in one or more sub-flows.
  • The inputs to a process must be sufficient to produce the outputs (including data placed in data stores) from the process. Thus, all outputs can be produced, and all data in inputs move somewhere, either to another process or to a data store outside the process or on a more detailed DFD showing a decomposition of that process.
  • At the lowest level of DFDs, new data flows may be added to represent data that are transmitted under exceptional conditions; these data flows typically represent error messages (e.g., “Customer not known; do you want to create a new customer”) or confirmation notices (e.g., “Do you want to delete this record”).
  • To avoid having data flow lines cross each other, you may repeat data stores or sources/sinks on a DFD. Use an additional symbol, like a double line on the middle vertical line of a data store symbol, or a diagonal line in a corner of a sink/source square, to indicate a repeated symbol. (Adapted from Celko, 1987)
  • When to stop:
  • Each process is a single decision or calculation or a single database operation, such as retrieve, update, create, delete or read.
  • Each data store represents data about a single entity such as a customer, employee, product or order.
  • The system user does not care to see any more detail or when you and other analysts have dcoumented sufficient detail to do subsequesnt systems development tasks.
  • Every data flow does not need to be split further to show that different data are handled in different ways.
  • You believe that you have shown each business form or transaction, computer screen and report as a single data flow.
  • You believe there is a separate process for each choice on all lowest-level menu options for the system.
  • Class Examples of the Registration Process:
    Data Flow Diagram (DFD) Example (Context and Level 0 Diagrams).
    Data Flow Diagram (DFD) Example (Level 4 Explosion).

    An example of a data flow diagram for a library is also available on the Internet.
