Assignment 1

The Assignment

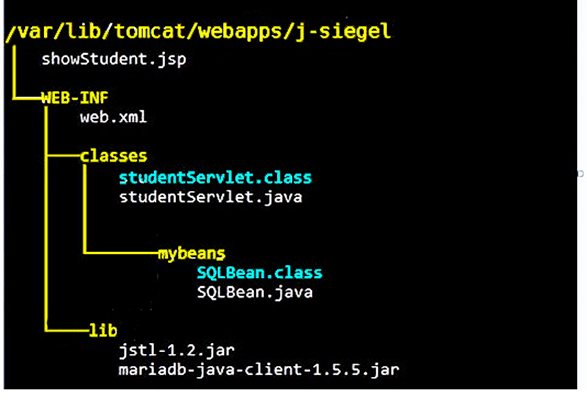

1. Build the yellow directory tree.
2. Copy and insert the white files from Overview
3. Build the blue files
4. Test and, if running, alert me by email.

The Diagram:

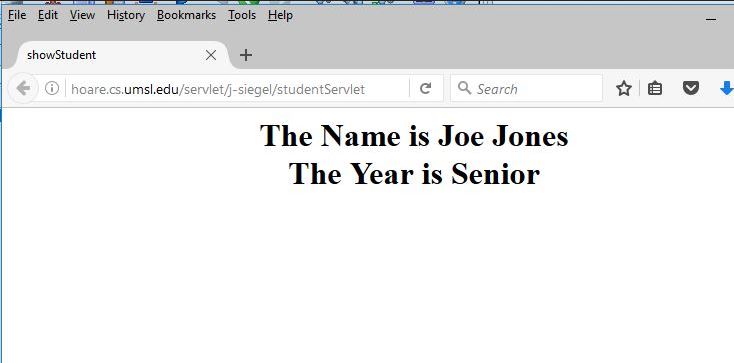

The Browser Request and Return:

MariaDB and Java are available after the account was created.

To test access to MariaDB, from the command line execute:
 mysql --user=cs4010 --password=cs4010 --database=cs4010

With respect to Java, so that I could work with Tomcat.

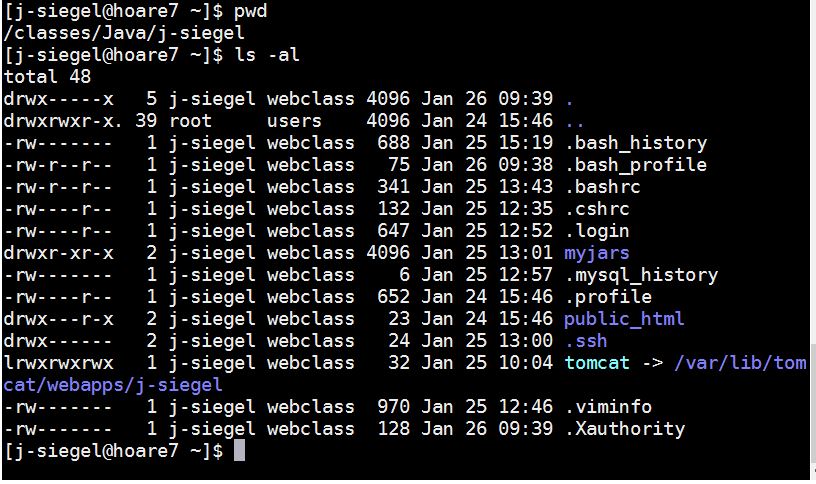

I created a directory myjars under my home directory and put the various Web jars in it from

theJars.zip

(recall "others" go in the same directory not a sub directory).

I also added two files to my account home directory.

.bash_profile and .bashrc

.bash_profile
---------------------------------
# Get the aliases and functions
if [ -f ~/.bashrc ]; then
    . ~/.bashrc
fi
-------------------------------
and

.bashrc
-----------------------------------------
#!/bin/sh
# Source global definitions
if [ -f /etc/bashrc ]; then
    . /etc/bashrc
fi

# My aliases and functions
export CLASSPATH=.:/usr/share/java/*:/home/j-siegel/tomcat/WEB-INF/lib/*:/home/j-siegel/myjars/*;
alias h='history';
alias gotoTom='cd /var/lib/tomcat/webapps/j-siegel';

------------------------------------------------------------

Your files would have your account name. Also, you have to reboot to execute.
The CLASSPATH is a bit of overkill
and there are different ways to do this but when I just execute  the command

gotoTom from wherever I am, I get to my webapp.
