Alpha recoils in Ruby Muscovite Mica

Here find selected images from our first look at these specimens on 25 Nov 1997. /pf

Home|Previous Page|Next Page


97.45 Kb
511 x 463

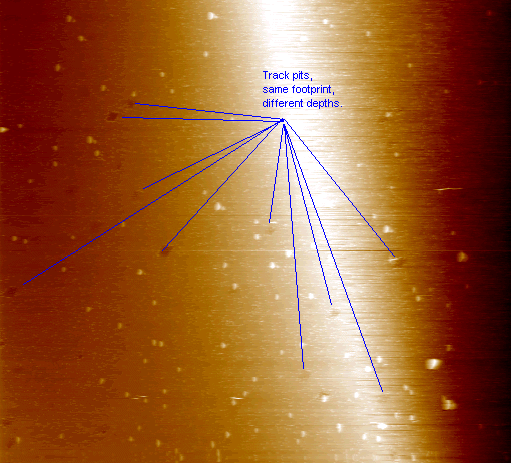

Low-mag view of ruby muscovite after 2 hr in HF. FW=100 microns.

79.56 Kb
513 x 513
Medium-mag view of two alpha-recoil pits. FW=17 microns.

109.47 Kb
512 x 512
Contact-mode topography of alpha-recoil pit. FW=3 microns.

352.13 Kb
1024 x 768
Nano-human view of alpha-recoil pit. FW = 3 microns.

106.82 Kb
512 x 512
Edge-map of topographic image. FW=3 microns.

124.85 Kb
513 x 513
Lateral force image of alpha recoil track. FW = 3 microns.

64.83 Kb
378 x 343

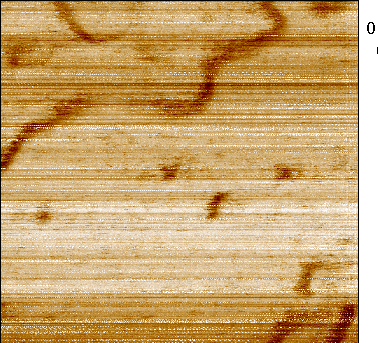

Contact-mode image of muscovite layer terraces. FW=238 nm.

92.34 Kb
378 x 343

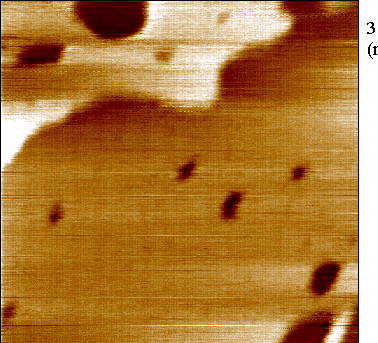

Lateral force image of steps and pin-holes in mica layers. FW=238 nm.
