Extreme Programming



Wilfrid Hutagalung

IS6840 Class

 Dr. Vicki Sauter

Fall Semester 2006



Introduction

Waterfall and the Old Methodologies

The Advent of Agile Methodologies

Extreme Programming

Extreme Programming in Practices

Weaknesses and Challenges

Conclusion

References







Introduction

            System developments as a part of systems analysis and design have been developing with improved methodologies and approaches. As we already knew, in systems development a methodology refers to a framework that is used to structure, plan and control the process of developing an information system [1]. The still most used methodologies in systems development are Waterfall methodologies, which were proposed by W.W. Royce in 1970 [2].



Waterfall and the Old Methodology

            Traditional software development methodology to which Waterfall model belongs, use rigid procedures and requires deep and precise up-front planning. Before any work can be started all requirements must be ready and validated. There is a clear path and clear goals on the the projects. Below is a diagram of traditional waterfall method.

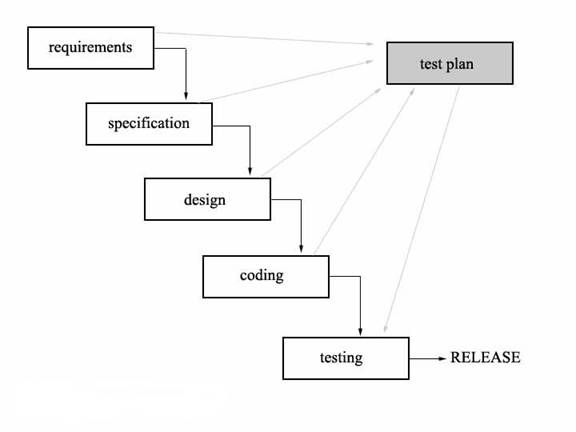

Figure 1. Waterfall Method [3]



            By emphasizing on clear definition from the beginning of project waterfall approach has the strengths of ability to analyze potential changes easily, large and distributed teams are well-coordinated, predictable budgets, and only needs small involvement from subject matter experts [4]. This approach, however, also surfaces negative issues which become the weaknesses of the waterfall methodologies: lack of flexibility, difficulty in predicting actual needs for the software, the loss of intangible knowledge between phases, discouragement of team cohesion, and the tendency to not discover design flaws until the testing phase.





The Advent of Agile Methodologies

            Over the years there have been criticisms on the waterfall method or model due to some of its characteristics which are not suitable to more current environments. Some considerations which reveal the weaknesses of waterfall method are [5]:

·        In reality it is very difficult for projects to follow the sequential flow of the model

·        It is difficult to identify all requirements and goals at the beginning of projects as requirements tend to change all the way

·        A working version can only be obtained late in the process



                        The background for waterfall method’s characteristics is that it was developed using engineering approach [6]. Critics argue that engineering processes like in building bridges are simply not suitable to be applied to software development because conditions are different.

                        As a reaction (or correction) to the shortcomings of traditional methodology several new and improved methodologies were introduced. Agile methodologies, introduced in 2001, replace the rigid and predictive nature of traditional methodology with adaptive and agile methods. Below is a picture of how agile methodologies differ from traditional waterfall model.

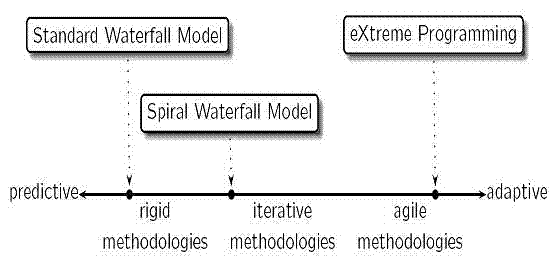

Figure 2. Waterfall vs eXtreme Programing [7]



The main concern of agile methodologies is the ability to embrace changes which are very likely to happen in environments which lack predictability [6]. To achieve the objective, agile methodologies use three key principles [8]: (1) a focus on adaptive methodologies, (2) a focus on people, and (3) a focus on self-adaptive processes. These principles can be expanded furthermore as [24]:

·         Testing is early, often and frequently automated

·         Incremental design

·         Daily deployment

·         High level of customer involvement

·         Continuous integration

·         Short development cycles

·         Incremental planning

·         Single code base

·         Embracing change

Agile methodologies do not refer to one specific approach but are a group of individual methodology that implement agile principles. Several agile methods that have been developed are:[8]

­       Scrum

­       Dynamic Systems Development Method (DSDM)

­       Crystal Methods

­       Feature Driven Development

­       Lean Development

­       Extreme Programming (XP)

­       Adaptive Software Development



            Extreme Programming (XP) happens to be the most well-known of agile methodologies and will be explored further.



Extreme Programming

            The origin of extreme programming (XP) started in 1990s when Kent Black tried to find a better way of doing software development when he was handling a project at DaimlerChrysler [9]. His new approach which will later be called Extreme Programming Methodology and proved to be a successful method.

            As a method which was created as a reaction to the old methodology XP uses different approaches that distinguishes itself from waterfall model. One significant difference in its approach is that it focuses on adaptability rather than on predictability. [2]. The reason behind this approach is that software development is a very fluid process where requirements cannot be fully predicted from the beginning but will always change as projects move on. Hence software development needs a methodology that is capable to adapt to changing requirements at any point during the project life.

            In his experiment at the DaimlerChrysler project Kent found four dimension which then became the philosophies of XP. These are dimensions which, if implemented correctly, will improve any software development project. The dimensions are [9]:

1.      You need to improve communication.

2.      You need to seek simplicity.

3.      You need to get feedback on how well you are doing.

4.      You need to always proceed with courage.

            Combining all these principles, Extreme Programming works by bringing the whole team together in the presence of simple practices, with enough feedback to enable the team to see where they are and to tune the practices to their unique situation [10]. Although practices used in XP are actually common practices which are shared by other methodologies, XP goes further by doing those practices to an extreme level (hence the “Extreme” Programing). Below is a table on how XP is extreme.



good practices are

pushed to the extreme.

Code reviews

review code all the time (pair programming)

Testing

everybody will test all the time (unit testing) even the customers (functional testing)

Design

make it part of everybody's daily business (refactoring)

Simplicity

always leave the system with the simplest design that supports current functionality (simplest thing that could possibly work)

Architecture

everybody will work defining and refining the architecture all the time (metaphor)

Integration testing

integrate and test several times a day (continuous integration)

Short iterations

make iterations really short-seconds, minutes, hours not weeks, months, years (the planning game)



Table 1. Why it’s called eXtreme [11]



Extreme Programming in Practices

            There are four basic activities that XP proposes for software development process [12]:

1.      Coding.

In XP coding is considered the only important product of the system development process. XP programmers start to generate codes at the very beginning so “At the end of the day, there has to be a program.”

2.      Testing.

XP emphasizes to always check if a function works is by testing it. XP uses Unit Tests which are automated tests, and the programmer will write tests as many as possible to try to break the break the code he or she is writing.

3.      Listening

Obviously, coding and testing need to be done no matter how a system is developed, but listening is very important in XP [13]. For XP developers the ability and expertise in technical aspects should be accompanied by the ability to be good listeners. This ability will enable them to understand what customers want and develop solutions which match customers’ needs and desires as close as possible.

4.      Designing

XP’s simplicity principle doesn’t mean that it can exclude designing process. Without proper design in the long run system becomes too complex and projects could come to a halt. It is then important to create a design structure that organizes the logic in the system so too many dependencies in the system can be avoided.



            In XP these four basic activities are implemented by using practices which are traditional software engineering practices but elevated to embody and encourage XP values. Although completely there are 28 rules and practices of Extreme Programing [9] they can be compacted into twelve simple rules [14] [15]:

1.      User stories (planning): User stories can be viewed as a smaller version of use case. In this way, the customer define as briefly as possible the specification of the new application (features, value, priority). These stories will be the base for the project team to do cost estimation and management of the project.

2.      Small releases (building blocks): XP emphasizes on small, simple but frequent versions updates of the application. Each newly added requirement will instantly incorporated and the system is re-released.

3.      Metaphor (standardized naming schemes): Developers and programmers must adhere to standards on names, class names and methods.

4.      Collective ownership: In XP methodology, all code is considered to be owned by the whole team and not an individual property. Hence, all code is reviewed and updated by everyone.

5.      Coding standard: Styles and formats of coding must be the same in order to enable compatibility between team members. This approach results in more rapid collaboration.

6.      Simple design: Always look for system implementation that is as easy as possible implementation of the system yet meets all required functionality.

7.      Refactoring: The application should be continually adjusted and improved by all team members. This requires extremely good communication between members to avoid work duplication.

8.      Testing: Every small release (called building block) must pass tests before being released. XP’s uniqueness in this aspect is that tests are created first and then application code is developed to meet and pass the cahllenges of those pre-written tests.

9.      Pair programming: XP programmers work in pairs. All code is developed by two programmers who work together at a single machine. The expectation is that pair programming produces higher quality code at the same or less cost.

10.  Continuous integration: Software builds are completed several times a day. In this way all developers can avoid work fragmentations because they continuously releasing and integrating code together.

11.  40-hour workweek: Keep mental and physical conditions to be up and running by not working more than what the bodies can handle.

12.  On-site customer: The customer must be viewed as an integral part of the project. The customer must be arranged to be available at all times in order to ensure that the project is in the right track.

                        XP process can be represented by the diagram below:

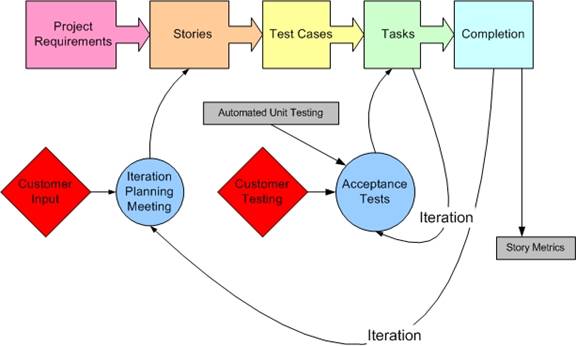

Figure 3. XP process [16]



Weaknesses and Challenges

            Although XP methodology can result in an improved process which is more efficient more predictable more flexible and more fun [17], [18] it also has weaknesses such as:

        Difficulty coordinating larger teams

        Can result in a never-ending project if not managed properly

        Tendency to not document thoroughly

        Predicting the precise features to be accomplished in a fixed time/budget

which are actually common weaknesses in methodologies using iterative approach [19]. Some XP opponents argue that the very highly valued XP practices also make it a high risk proposition [20]. Failure or disturbance  in just one rule will severely affect the next rules like in domino effect. However, it is worthwile to point out that according to Standish Group’s research that  developing projects with smaller time frames, with delivery of software components early and often, which are best practices used in XP methodology, will increase the success rate [21].

            To put things in perspective, XP works best if applied on projects which have certain characteristics [12] [22]:

·        The project uses new or prototype technology which is still developing and hence will incorporate many changes along the way and many implementation problems are still unforeseen.

·        Frequent, small releases are possible.

·        The projects are for research purposes.

·        Projects are small and more easily managed through informal methods.

            Below is a matrix on which methodologies apply best in certain condition:

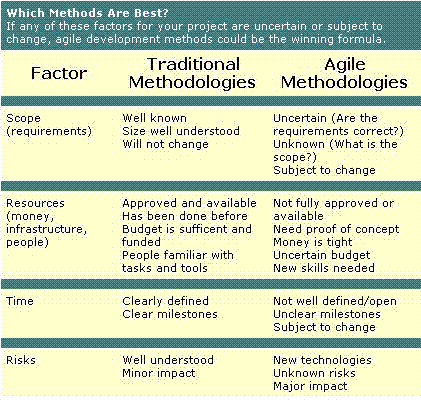

Table 2. Choosing the Appropriate Method [23]



Conclusion

            There is no such thing as the best methodology. Project Managers must weigh project aspects against available methodologies to make an appropriate selection. If a certain development process has been working well then it will be wise to stick with it. Other methodologies like XP, Scrum, CMM, or RUP can be reviewed to borrow some good and applicable ideas into the current methodology in use.







References

1.      www.cms.hhs.gov/SystemLifecycleFramework/Downloads/SelectingDevelopmentApproach.pdf

2.      www.wikipedia.org

3.      www.cs.earlham.edu/~pickeju/sensem/figure1.html

4.      www.ncycles.com/ e_whi_Methodologies.htm#_Toc28065936

5.      Center for Technology in Government, University at Albany, A Survey of System Development Process Models, University at Albany / SUNY, 1998.

6.      Hoffer, Jeffery A., George, Joey F., Valacich, Joseph S. Modern Systems Analysis and Design. New Jersey: Prentice Hall, 2005.

7.      Dr Dmitry Tishkovsky, Software Development Tools, www.csc.liv.ac.uk/~dmitry/courses/COMP350/notes/COMP350-02-methodology.pdf

8.      Steve Hayes, Martin Andrews, An Introduction to Agile Methods, www.wrytradesman.com/articles/IntroToAgileMethods.pdf

9.      www.extremeprogramming.org

10.  www.xprogramming.com/xpmag/whatisxp.htm

11.  http://moonbase.wwc.edu/~aabyan/XP/problem.html

12.  www.selectbs.com/glossary/what-is-extreme-programming.htm

13.  Kenneth E. Kendall, Extreme Programming in Practice: A Human-Valued Approach to the DSI Conference Management System, Decision Line Vol. 35,October 2004

14.  Scott Withrow, Extreme Programming: Do these 12 practices make perfect?, http://articles.techrepublic.com.com/5100-22_11-1046488.html

15.  B. Rumpe, P. Scholz, Scaling the Management of Extreme Programming Projects, Projects & Profits Special Issue on Management of Extreme Programming Projects, Vol. III (8), pp. 11-18. ICFAI Press, Hyderabat, August 2003.

16.  www.codeproject.com/gen/design/XP.asp?msg=1758050

17.  http://positivesharing.com/2006/01/extreme-projects

18.  John Noll, Darren C. Atkinson, Comparing Extreme Programming to Traditional Development for Student Projects: A Case Study, Department of Computer Engineering Santa Clara University, year unknown

19.  Dan Marks, Development Methodologies Compared, N·CYCLES Software Solutions, December 2002.

20.  www.softwarereality.com/lifecycle/xp/safety_net.jsp

21.  Clement James Goebel III, Extreme Programming Practices Used to Facilitate Effective Project Management, Menlo Institute LLC, 2003.

22.  www.onlamp.com/pub/a/onlamp/2003/07/31/extremeprogramming.html

23.  www.ddj.com/dept/architect/184411706

24.  www.msonewyork.com/agilemethod.html
